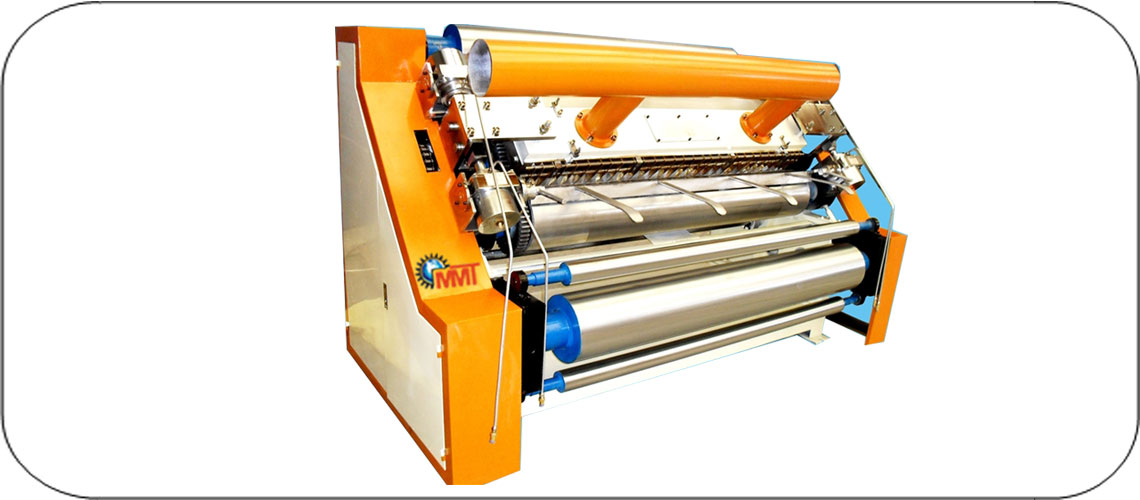

Design Speed : 60m / min
Effective width : 1400mm
Corrugated roller : Φ280mm
Drive reducer box, oil immersed type lubricating to reduce noise keep running stable adopt transmission separate power
Corrugating roller pressure roller and glue roller by pneumatic adjustment
Bearing of corrugated and pressure roller adopt high temperature lubricate grease
Glue parts auto supply glue circularly
The upper - lower corrugating rollers are made of 52CrMo high quality alloy steel after heat - treatment
The hardness HRC58' - 60', the surface is been grinded
The glue part surface are treated by special mesh and chrome plated
Manual glue width dividing to match the paper width
